Macintosh Keyboard Layouts

Macintosh Keyboards Layouts (QWERTY-Version)

Below are the keyboard layouts of all Macintosh keyboards supported in the international system software. The layouts are shown using KCHR id=0 (US layout). Info Source:

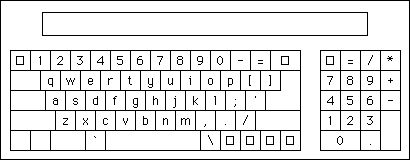

Apple Keyboard

KCAP id=1; gestaltStdADBKbd=5

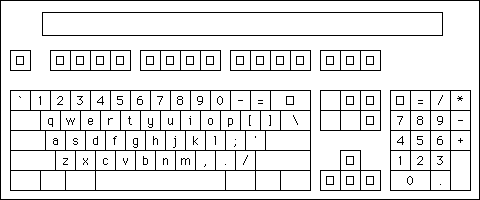

Apple Extended Keyboard

KCAP id=2; gestaltExtADBKbd=4

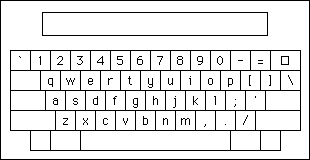

Macintosh 512K Keyboard

KCAP id=3; gestaltMacKbd=1

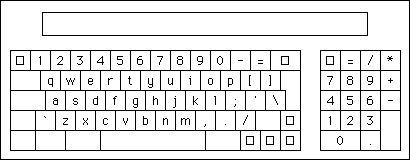

Apple ISO Keyboard

KCAP id=4; gestaltStdISOADBKbd=8

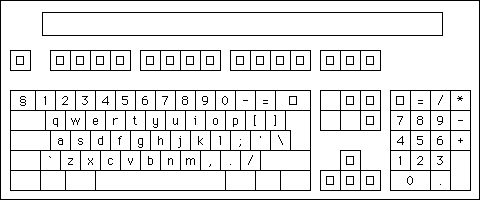

Apple ISO Extended Keyboard

KCAP id=5; gestaltExtISOADBKbd=9

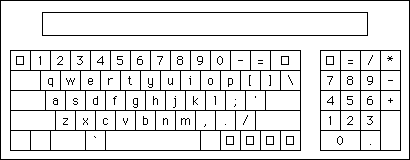

Macintosh Portable Keyboard

KCAP id=6; gestaltPrtblADBKbd=6

Macintosh Portable International Keyboard

KCAP id=7; gestaltPrtblISOKbd=7

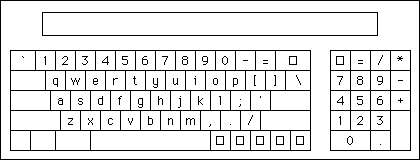

Macintosh Keyboard II

KCAP id=8; gestaltADBKbdII=10

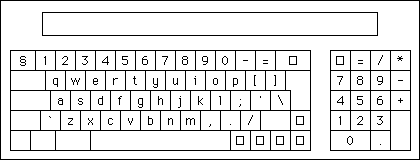

Macintosh ISO Keyboard II

KCAP id=9; gestaltADBISOKbdII=11

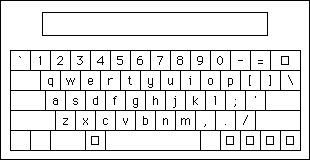

Unknown Keyboard

KCAP id=10

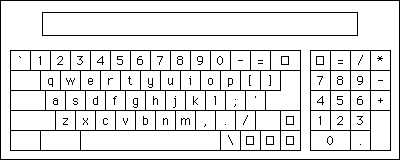

Macintosh Plus Keyboard

KCAP id=11; gestaltMacPlusKbd=3

PowerBook Keyboard

KCAP id=12; gestaltPwrBookADBKbd=12

PowerBook ISO Keyboard

KCAP id=13; gestaltPwrBookISOADBKbd=13

Apple Adjustable Keyboard (Numeric Part)

KCAP id=14; gestaltAppleAdjustKeypad=14

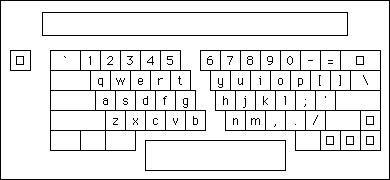

Apple Adjustable Keyboard

KCAP id=16; gestaltAppleAdjustADBKbd=15

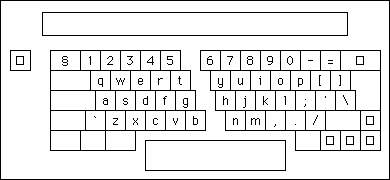

Apple Adjustable ISO Keyboard

KCAP id=17; gestaltAppleAdjustISOKbd=16

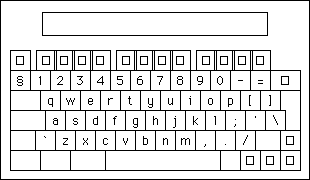

PowerBook Extended Keyboard

KCAP id=20; gestaltPwrBkExtISOKbd=20

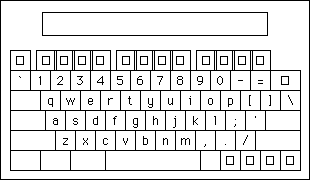

PowerBook ISO Extended Keyboard

KCAP id=24; gestaltPwrBkExtADBKbd=24

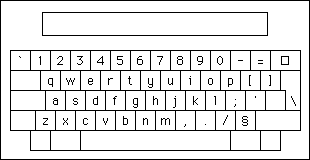

Macintosh 512K International Keyboard

KCAP id=259
